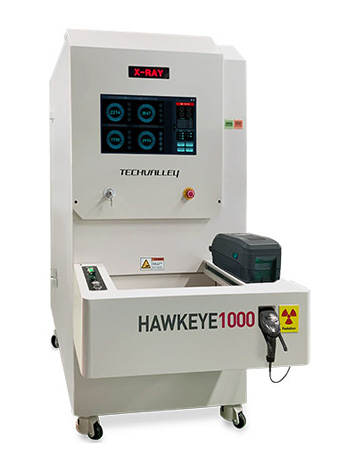

HAWKEYE1000
PRODUCT DESCRIPTION
The HAWKEYE1000 only needs one button to count various components automatically in a few seconds. The HAWKEYE1000 can also count up to four reels (180 mm) simultaneously. Various chips and components are counted, with the results sent directly to the SMD material management server (ERP system). Also during this process, a new barcode label is printed for the purpose of updating off-line records. Techvalley has been improving their X-ray Chip Counter series since 2013, to the current fifth generation Chip Counter. We are evolving the ‘Automated X-ray Chip Counter’ to ensure advanced, automatic counting for a wider range of components, faster and efficiently with more flexibility.
features
- Counting up to 4 reels(180mm) simultaneously
- Connect integration ERP/MES system
- User-oriented UI configuration & Touch monitor
- Dramatically reduces labor costs and kitting times
- Automated, accurate and fast counting (180mm~380mm)
specifications
X-ray Source
65kV
MAX. Scan Area
406mm
Inspection Time (180mm)
12sec (4 reels)
Inspection Time (380mm)
9sec
Accuracy
99~99.9%
MAX. Passage Height
100mm
Dimension (mm) (W x D x H)
900 x 1,600 x 1,850
Weight
800kg
