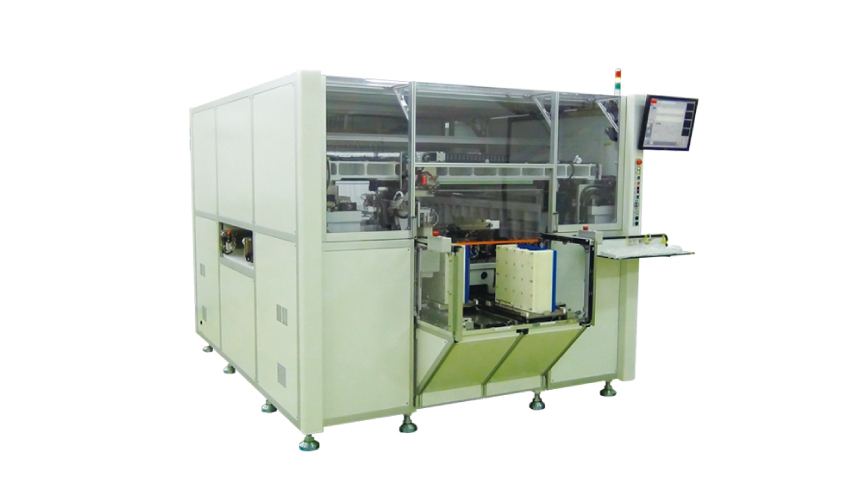

PP614
PRODUCT DESCRIPTION
A machine for automatically arraying HDI board pieces in the frame with high accuracy. With an arraying accuracy of ±50 μm, an array for the mounting process is created.
features
- Application examples: HDI PCB
- Max. work sheet size:X140mm x Y65mm
- Speed *1:7.0 s/array
- Feeding method:Automatic

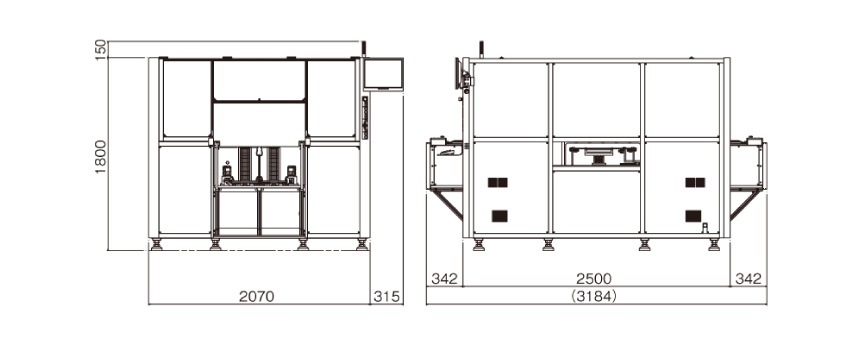

specifications
Model
PP614
Type
PP614
Application examples
HDI PCB
Application examples-Work sheet size
X45~140mm / Y30~65mm
Application examples-Work sheet thickness
0.5mm~1.6mm
Application examples-Max. weight
25 g/piece
Arraying capacity-Accuracy *1
±30μm
Arraying capacity-Speed *1
7.0sec/array
Frame Size
X3~80mm / Y50～320mm
Work sheet transfer-Loading / Unloading
Automatic
Image processing-Camera view
X4.8mm x Y3.6mm (standard)
Image processing-Pattern detection
Pattern recognition via grayscale
Image processing-Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-IDisplay
17 inch LCD with touch
panel
Software-OS
Windows7
Usage environment-Weight
約5,000kg
Usage environment-Power supply
3-phase, 200 to 220V AC, 50/60Hz, 6kVA
Usage environment-Dry air
0.5MPa
