PS404 / PS504
PRODUCT DESCRIPTION

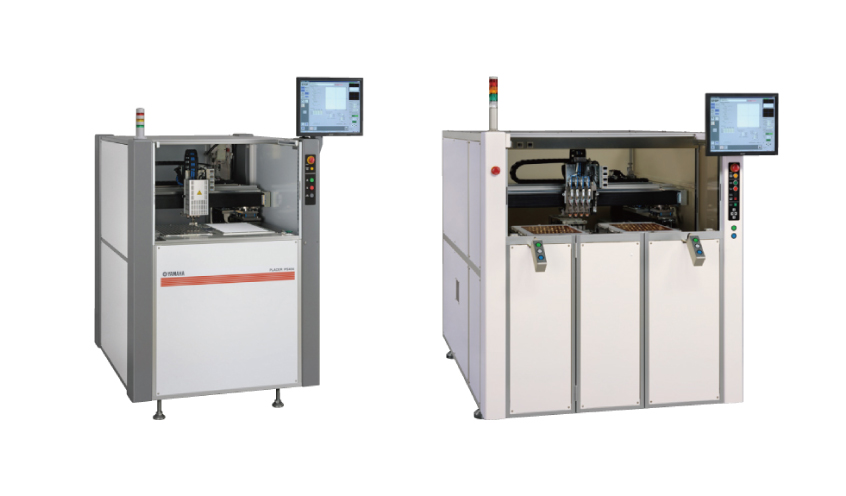

A machine for attaching stiffeners onto flexible PCBs. With an accuracy of ±50 μm, stiffeners are attached at high speeds and automatically.
features
- Application examples :Attaching side : SUS, PI etc. SUS, PI etc. / Attached side : Flex PCB Flex PCB
- Stiffener feed method : PS40 : Tray Tape feeder / PS504 : Magazine
- Max. target work sheet size. PS404 : X260mm x Y400mm/PS504 : X300mmx Y500mm
- Attachment speed:1.1~1.5 s/piece

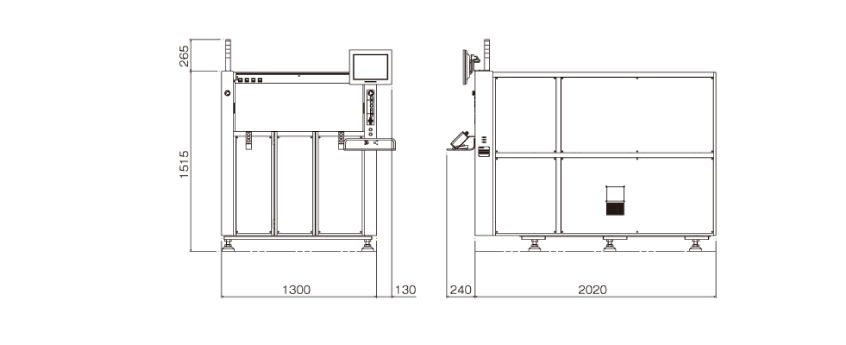

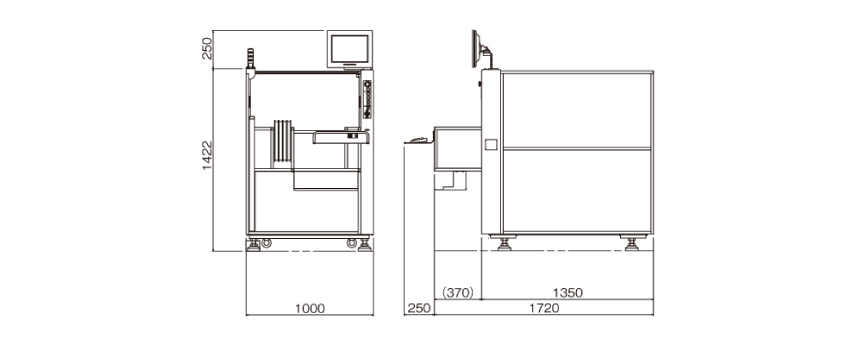

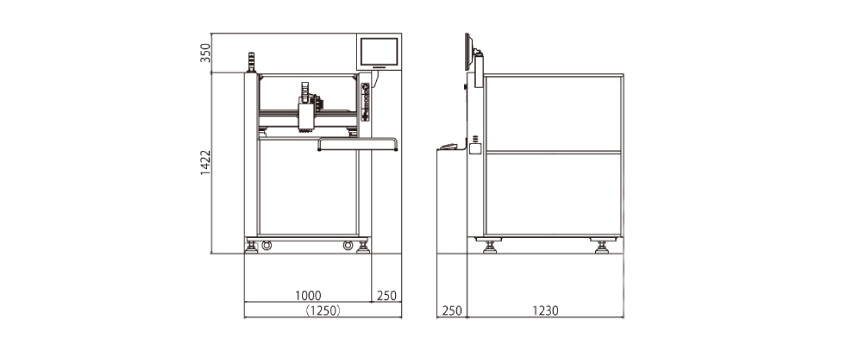

specifications
Model
PS404/PS504
Type
PS404-TV/PS404-FV/PS504
Application examples
Flex PCB, Rigid-Flex PCB, etc.
Piece feed-Feeding method
Tray/Tape feeder /Magazine
Attachment target work sheet-Max. work sheet size
X250mm x Y400mm / X260mm x Y400mm / X300mm x Y500mm
Attachment target work sheet-Max. work sheet thickness
1mm
Attachment target work sheet-Securing method
Rear-surface suction
Attachment stiffener-Material
SUS, PI etc.
Attachment stiffener-Max. thickness
0.5mm / 0.3mm
Attachment stiffener-Max. size
15mm x 15mm / 16mm x 16mm (tape width : 24mm) / 20mm x 30mm
Attachment stiffener-Min. size
3mm x 3mm / 3mm x 3mm (tape width : 24mm) / 4mm x 16mm
Attachment capability -Accuracy *1
±50μm
Attachment capability -Speed *1
1.1 s/piece 1.3 s/piece 1.5 s/piece
Attachment head-No. of heads
4
Attachment head-Built-in RFID
Not provided
Attachment head-Max. head suction face size
X18mm x Y18mm / X20mm x Y30mm
Attachment head-No. of heaters per head
4
Attachment head-Heater temperature
0～200℃
Work sheet transfer-Loading / Unloading
Manual
Image processing -Camera view
X4.8 x Y3.6mm (standard)
Image processing -Pattern detection
Pattern recognition via grayscale
Image processing -Illumination type
Transmission light, reflection light
Hardware-Interface
LAN,USB
Hardware-Display
17 inch LCD with touch panel
Software-OS
Windows7
Software-Production support function
Heater temperature sensor, attachment accuracy measurement
Usage environment-Weight
Approx. 430kg / Approx. 500kg / Approx. 1,000kg
Usage environment-Power supply
1-phase, 180 to 240V AC, 50/60Hz, 3kVA
Usage environment-Dry air
0.5MPa
